Oscilloscope Accessories HT25 Automotive Oscilloscope Probe with HT201 Oscilloscope 20:1 Passive Attenuator

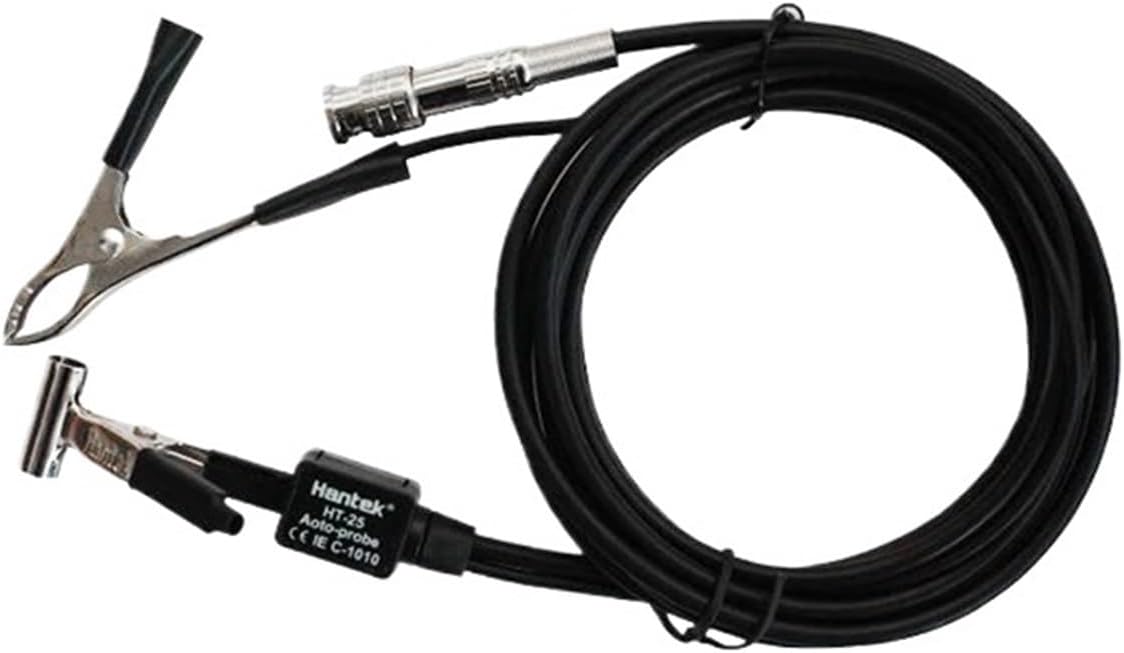

Voltage TestersOscilloscope Accessories HT25 Automotive Oscilloscope Probe with HT201 Oscilloscope 20:1 Passive AttenuatorHT25Feature:a kind of inductive capacitance sensor, it must match with an oscilloscopeClose to use, can be used to test a spark ignition secondary overlapping wave, overlapping wave parameters, thus achieved the detection, the diagnosis engine ignition position, make each cylinder ignition voltage changing with time directly from the oscilloscope display.The loot line has three end, a joint meet oscilloscope for BNC use, a for use, a clip grounding to pick high-voltage gleaned clip with. Loot clincher over is a attenuator, used for loot high-pressure attenuation for low pressure, thus protecting oscilloscope not electrify impact.When used please note:(1)test clips shall not directly clip in spark plug, should be caught in the connection of the spark plugs of insulation wire, in order to prevent the breakdown and causing a shock.(2)to distance other high-voltage at least 2 inches apart, lest produce interference.(3)HT25 leading line length 2.5 meters, the decay of up to 10,000:1.HT25 Auto ignition probeHT201This item has been designed to allow fuel injector and primary ignition waveforms to be measured using oscilloscope product.Features:Can allow oscilloscope to measure fuel injector and primary ignition waveforms.Passive attenuator with 20:1 attenuation.If input a 20V signal, it can output a 1V signal.By using this item, oscilloscope can measure voltage higher than its range(*20V)Specifications:Attenuation: 20:1Bandwidth: 10MHzInput Resistance: 1.053MItem Size: 60 * 18 * 16mm / 2.36 * 0.7 * 0.6inItem Weight: 24g /0.85ozPackage List:1 * AttenuatorPlease note: this attenuator should not be used for any high voltage measurements other than fuel injectors and primary ignition.
